Posted: Thu Jun 05, 2008 3:09 pm Post subject: Колорирование в ALV GRID
Задача состояла в написании отчета на ALV GRID, некоторые строки по определенному алгоритму мне надо было закрашивать в зеленый цвет. Столкнулась с такой проблемой, закрашиванию подддаются только строки недоступные к редактированию.
Можно ли это как нибудь победить и закрасить всю строку?
Age: 170 Joined: 04 Oct 2007 Posts: 1218 Location: Санкт-Петербург
Posted: Thu Jun 05, 2008 4:26 pm Post subject:

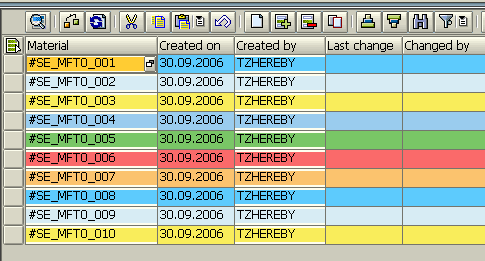

Немного измененый пример с сайта. Нужно создать пустой экран 9000

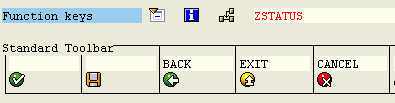

и статус ZSTATUS.
Code:
REPORT z_alv_edit_row_color.
*--- Internal table holding list data
DATA BEGIN OF itab OCCURS 0.
INCLUDE STRUCTURE mara.
DATA rowcolor(4) TYPE c .
DATA END OF itab.
DATA :
*Code Part 13 – Adding the field that will contain
*Field catalog
i_fieldcat TYPE STANDARD TABLE OF lvc_s_fcat,
wa TYPE mara,
w_variant TYPE disvariant,
w_layout TYPE lvc_s_layo,"Layout structure
*Docking Container
o_docking TYPE REF TO cl_gui_docking_container,
*GridDeclaring field symbols
o_grid TYPE REF TO cl_gui_alv_grid.
FIELD-SYMBOLS : <fs_fieldcat> TYPE lvc_s_fcat.
SELECT * FROM mara
INTO CORRESPONDING FIELDS OF TABLE itab
UP TO 10 ROWS.
CALL SCREEN 9000.
*&---------------------------------------------------------------------
*& Module STATUS_9000 OUTPUT
*&---------------------------------------------------------------------
* text
*----------------------------------------------------------------------
MODULE status_9000 OUTPUT.
IF o_docking IS INITIAL.
SET PF-STATUS 'ZSTATUS'. "GUI Status
SET TITLEBAR 'ZTITLE'. "TitleCreating Docking Container
CREATE OBJECT o_docking
EXPORTING
ratio = '95'.
IF sy-subrc EQ 0. "Creating Grid
CREATE OBJECT o_grid
EXPORTING
i_parent = o_docking.
ENDIF. "Filling the fieldcatalog table
CALL FUNCTION 'LVC_FIELDCATALOG_MERGE'
EXPORTING
i_structure_name = 'MARA'
CHANGING
ct_fieldcat = i_fieldcat
EXCEPTIONS
inconsistent_interface = 1
program_error = 2
OTHERS = 3.
DATA: ld_color(1) TYPE c.
*Populate field with color attributes
LOOP AT itab.
* Populate color variable with colour properties
* Char 1 = C (This is a color property)
* Char 2 = 3 (Color codes: 1 - 7)
* Char 3 = Intensified on/off ( 1 or 0 )
* Char 4 = Inverse display on/off ( 1 or 0 )
* i.e. wa_ekko-line_color = 'C410'
ld_color = ld_color + 1.
* Only 7 colours so need to reset color value
IF ld_color = 8.
ld_color = 1.
ENDIF.
CONCATENATE 'C' ld_color '10' INTO itab-rowcolor.
* itab-rowcolor = 'C410'.
MODIFY itab TRANSPORTING rowcolor.
ENDLOOP.
w_variant-report = sy-repid.
*Modifying the fieldcatalog for coloring a column
LOOP AT i_fieldcat ASSIGNING <fs_fieldcat>.
CASE <fs_fieldcat>-fieldname.
WHEN 'MATNR'.
<fs_fieldcat>-key = ' '.
*Make the field as non-key so that color should take effect
*Coloring a column
* <fs_fieldcat>-emphasize = 'C311'.
<fs_fieldcat>-edit = 'X'.
WHEN 'ERNAM'.
<fs_fieldcat>-edit = 'X'.
ENDCASE.
ENDLOOP. "Displaying the output
w_layout-info_fname = 'ROWCOLOR'.
CALL METHOD o_grid->set_table_for_first_display
EXPORTING
is_variant = w_variant
i_save = 'A'
is_layout = w_layout
CHANGING
it_outtab = itab[]
it_fieldcatalog = i_fieldcat
EXCEPTIONS
invalid_parameter_combination = 1
program_error = 2
too_many_lines = 3
OTHERS = 4.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
ENDIF.
ENDMODULE. " STATUS_9000 OUTPUT
*&---------------------------------------------------------------------
*& Module USER_COMMAND_9000 INPUT
*&---------------------------------------------------------------------
* PAI
*----------------------------------------------------------------------
MODULE user_command_9000 INPUT.
DATA lv_ucomm TYPE sy-ucomm.
lv_ucomm = sy-ucomm.
CASE lv_ucomm.
WHEN 'CANCEL' OR 'EXIT'.
PERFORM free_objects.
LEAVE PROGRAM.
WHEN 'BACK'.
PERFORM free_objects.
SET SCREEN '0'.
LEAVE SCREEN.
ENDCASE.
ENDMODULE. " USER_COMMAND_9000 INPUT
*&---------------------------------------------------------------------
*& Form free_objects
*&---------------------------------------------------------------------
* Free Objects
*----------------------------------------------------------------------
FORM free_objects .
CALL METHOD o_grid->free
EXCEPTIONS
cntl_error = 1
cntl_system_error = 2
OTHERS = 3.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
CALL METHOD o_docking->free
EXCEPTIONS
cntl_error = 1
cntl_system_error = 2
OTHERS = 3.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
ENDFORM.
