ALV with user defined menu in Toolbar

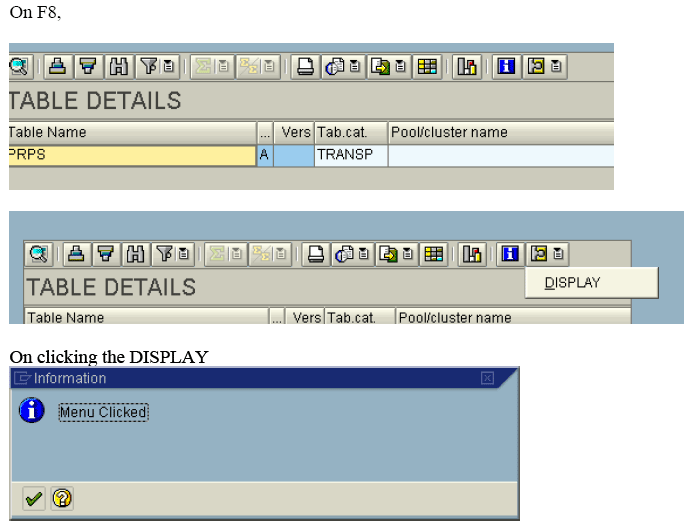

Sample code with screen shots of a very simple ALV with a user defined menu in the toolbar. On clicking the Menu item they become interactive and display a message.

Code:
REPORT zalv_intmenutool.
*Author : Swarna.S.
*AS : Simple ALV with user defined menu in toolbar
*Class declarations

CLASS lcl_event_receiver DEFINITION DEFERRED.
*type pool declarations

TYPE-POOLS : icon.

*Internal table and work area declarations for dd02l
DATA: it_dd02l TYPE TABLE OF dd02l,
      wa_dd02l TYPE dd02l.

*Data declaration for alv.
DATA: it_layout TYPE lvc_s_layo,
      it_toolbar TYPE stb_button,
      c_alv TYPE REF TO cl_gui_alv_grid,
      custom_container TYPE REF TO cl_gui_custom_container,
      event_receiver TYPE REF TO lcl_event_receiver.

*Select options multiple values no ranges
SELECT-OPTIONS : s_table FOR wa_dd02l-tabname NO INTERVALS.

*Initialization event
INITIALIZATION.
*Start of selection event

START-OF-SELECTION.
*sUBROUTINE FOR ALV DISPLAY
  PERFORM alvdisplay.

*Class definition
CLASS lcl_event_receiver DEFINITION.
  PUBLIC SECTION.
    CLASS-METHODS:
*handling toolbar for interactive
    handle_toolbar
    FOR EVENT toolbar OF cl_gui_alv_grid
    IMPORTING e_object e_interactive,
*handling menu button
    handle_menu_button
    FOR EVENT menu_button OF cl_gui_alv_grid
    IMPORTING e_object e_ucomm,
*On click of the menu button
    handle_user_command
    FOR EVENT user_command OF cl_gui_alv_grid
    IMPORTING e_ucomm.
  PRIVATE SECTION.
ENDCLASS. "lcl_event_receiver DEFINITION

*Class implementation
CLASS lcl_event_receiver IMPLEMENTATION.
  METHOD handle_toolbar.
* handle toolbar
    CLEAR it_toolbar.
    MOVE 'DETAIL' TO it_toolbar-function.
    MOVE icon_detail TO it_toolbar-icon.
    MOVE 2 TO it_toolbar-butn_type.
    APPEND it_toolbar TO e_object->mt_toolbar.
  ENDMETHOD. "handle_toolbar
  METHOD handle_menu_button.
* handle own menubuttons
    IF e_ucomm = 'DETAIL'.
      CALL METHOD e_object->add_function
        EXPORTING
          fcode = 'DISPLAY'
          text  = 'DISPLAY'.
    ENDIF.
  ENDMETHOD. "handle_menu_button
  METHOD handle_user_command.
*On click
    CASE e_ucomm.
      WHEN 'DISPLAY'.
        MESSAGE 'Menu Clicked' TYPE 'I'.
    ENDCASE.
  ENDMETHOD. "handle_user_command
ENDCLASS. "lcl_event_receiver IMPLEMENTATION

*&---------------------------------------------------------------------*
*& Module PBO OUTPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE pbo OUTPUT.
  IF custom_container IS INITIAL.
* select data from table dd02l
    PERFORM fetch_dd02l.
* create a custom container control for our ALV Control
    CREATE OBJECT custom_container
    EXPORTING
    container_name = 'CCONT'.
* create an instance of alv control
    CREATE OBJECT c_alv
    EXPORTING i_parent = custom_container.
* Set a titlebar for the grid control
    it_layout-grid_title = 'TABLE DETAILS'.
*ALV display
    CALL METHOD c_alv->set_table_for_first_display
      EXPORTING
        i_structure_name = 'dd02l'
        is_layout        = it_layout
      CHANGING
        it_outtab        = it_dd02l.
*Handlers for the events
    CREATE OBJECT event_receiver.
    SET HANDLER event_receiver->handle_user_command
    event_receiver->handle_menu_button
    event_receiver->handle_toolbar FOR ALL INSTANCES.
*Calling the interactive toolbar method of ALV
    CALL METHOD c_alv->set_toolbar_interactive.
  ENDIF.
ENDMODULE. " PBO OUTPUT
*&---------------------------------------------------------------------*
*& Module PAI INPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE pai INPUT.
ENDMODULE. " PAI INPUT
*&---------------------------------------------------------------------*
*& form fetch_dd02l
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
*Subroutine to fetch data
FORM fetch_dd02l.
  SELECT * FROM dd02l INTO CORRESPONDING FIELDS OF TABLE it_dd02l WHERE tabname IN s_table.
ENDFORM. " SELECT_TABLE_dd02l
*&---------------------------------------------------------------------*
*& Form ALVDISPLAY
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM alvdisplay .
* ALV output
  SET SCREEN 600.
ENDFORM. " ALVDISPLAY
[/code]


 Description:
 Filesize:  39.26 KB
 Viewed:  8127 Time(s)
